Heat exchanger/Condenser/Boiler tube
• Home > Product > Heat exchanger/Condenser/Boiler tube

  • Heat Exchanger

  • Heat Exchanger

  • Copper Alloy Steel PIPE

  • Ferrules

  • Ferrules

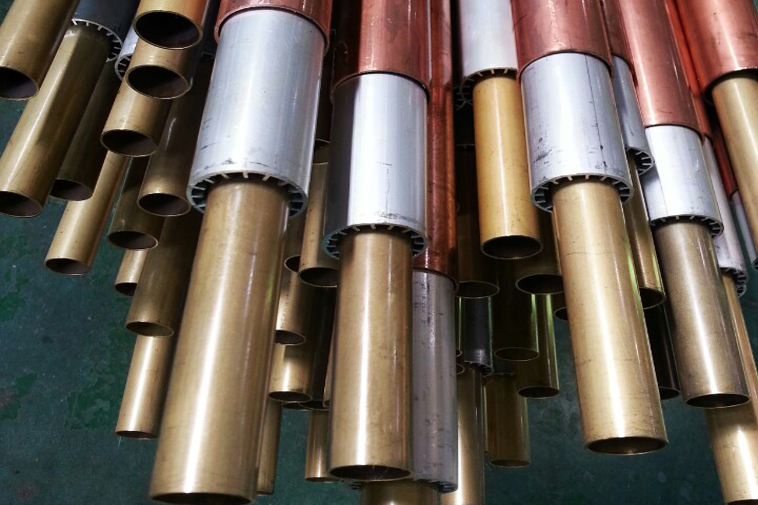

  • Heat Exchanger Tube

  • Third Class Quality Vessel Engine Cooling

  • Power Plant Cooling Parts

  • Heat Exchanger U Bending

  • Heat Exchanger/ Condenser/ Boiler Tube

  • Heat Exchanger Ferrule Tube

  • Heat Exchanger/ Condenser/ Boiler Tube

  • Heat Exchanger U Bending

  • Heat Exchanger

  • Stainless Steel

  • Copper Alloy Steel

Handling Steel Grade

First factory Stainless Steel Alloy Steel/ Austenitic 304/304L, 304N, 304LN, 304H, 316/316L, 316N, 316LN, 316Ti,
310S, 321/321H, 317L, 347/347H
Martensitic 410S, 420J2, 440B
Duplex S31803, S32205, S32750 , S31260
Alloy Steel Corrosion Resistivity Alloy Steel TITANIUM GR.2, ALLOY 200, ALLOY 201, ALLOY 400, ALLOY K-500,
904L, ALLOY C-276, ALLOY 20, ALLOY C-4, ALLOY 22, UNS 30825, S31002
Heat Resisting Alloy Steel ALLOY 600, ALLOY 601, ALLOY 310S
High Temperature / High Strength Alloy Steel ALLOY 600H, ALLOY 601H, ALLOY 800H, ALLOY 800HT
Second Factory Nonferrous Metal C68700, C44300, C26000, C60800, C70600, C71500, Aluminium
Carbon Steel A179/SA179, A106/SA106 Gr.B, A335/SA335 P11, STKM, STPG, T1, T5, T9, T11 , T12, T21,
T22

Applied Standard

ASTM, ASME, AISI, DIN, JIS, KS

Applied Area

Heat exchanger & Boiler
Power Plant
Oil line industry Facilities
U-BENDING
Petro chemistry

Producible Standard

outside : 12.7mm (0.5") ~ 50.8mm (2")
Thickness : 0.5mm (0.019") ~ 5mm (0.19")
Length : ~30m (1.181")

TUBE (Product Production Standard)

Matric(mm) Inch Weight
O.D W.T O.D W.T kg/Mtr
12.7 0.89 1/2 0.035 0.264
12.7 1.24 1/2 0.049 0.356
12.7 1.65 1/2 0.065 0.457
12.7 2.11 1/2 0.083 0.560
15.88 1.24 5/8 0.049 0.455
15.88 1.65 5/8 0.065 0.589
19.05 1.24 3/4 0.049 0.554
19.05 1.65 3/4 0.065 0.720
19.05 2.11 3/4 0.083 0.986
19.05 2.77 3/4 0.109 1.131
25.4 1.65 1 0.065 0.982
25.4 2.11 1 0.083 1.232
31.75 1.24~2.77
38.1 1.24~2.77
50.8 1.24~5.0t
